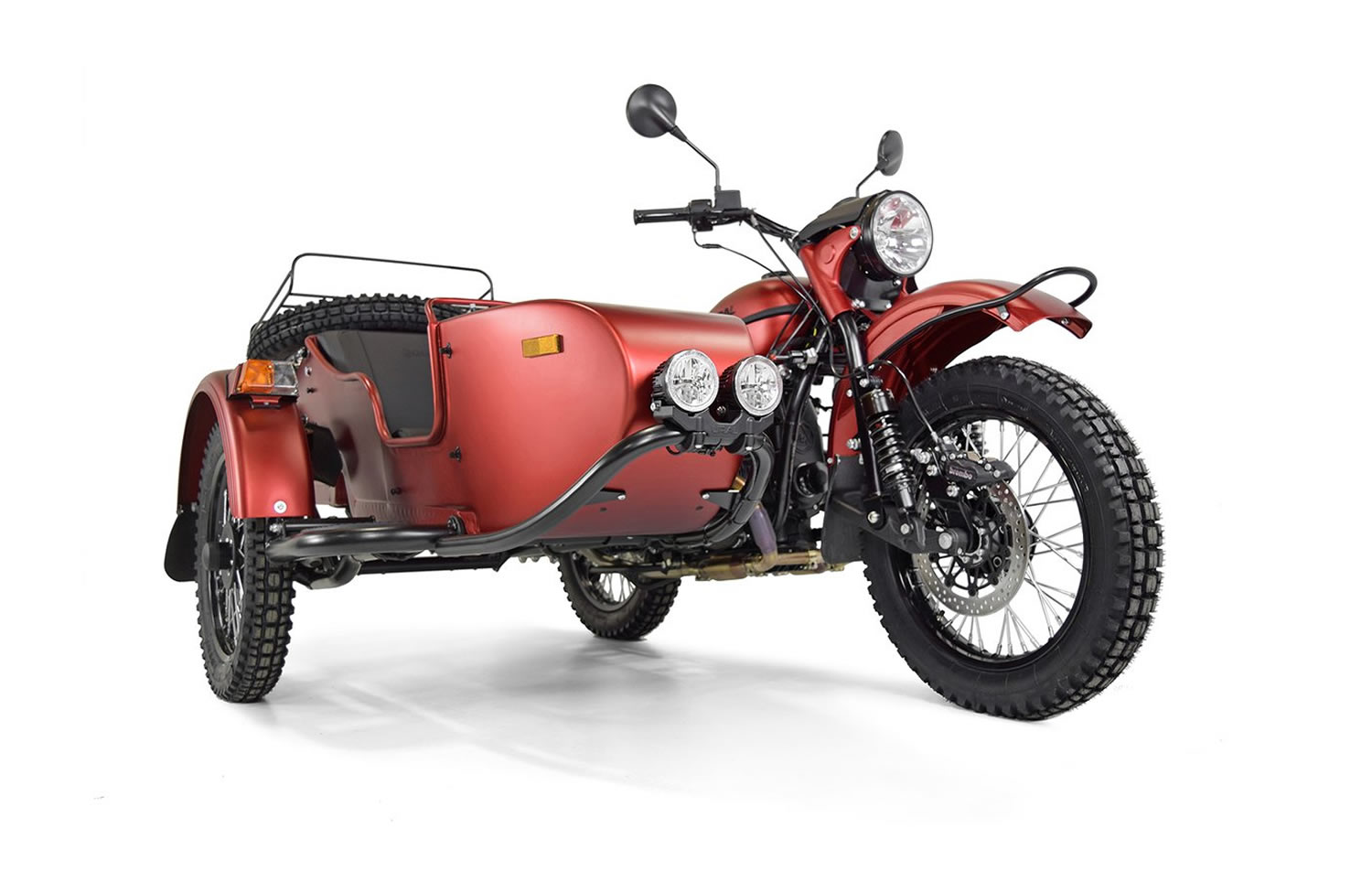

Ural Gear Up 2022

Engine and Transmission

• Displacement, cc: 749

• Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)

• Valve per cylinder: 2

• Bore and stroke (mm x mm): 78 x 78

• Max output (hp): 41 @ 5500 rpm

• Max torque (ft-lbs): 42 @ 4300 rpm

• Compression: 10.5:1

• Fuel system: Throttle body EFI

• Starting: Electric & Kickstart

• Clutch Double-disc dry

• Transmission type: Manual

• Speeds: 4 forward 1 reverse

• Primary drive (rear wheel): Driveshaft

• Final drive ratio: 4.62

• Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements

• Overall length, inch.: 98.8

• Overall heights, inch.: 54.3

• Overall width, inch.: 63.6

• Seat height, (unladen), inch.: 32.0

• Ground clearance (unladen),inch.: 6.8

• Dry weight, lbs: 730

Electrical

• Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt

• Battery: YTX20-BS (12V, 20A)

• Headlight: H4

• Spark plugs: NGK BPR7HS-10

Chassis

• Front suspension: IMZ leading link fork

• Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 7x adjustable

• Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 7x adjustable

• Wheels: 2.15X19 Aluminum rims with steel spokes

• Tires: Heindenau K37, 4.0×19′′

• Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor

• Rear brake: Two-piston fixed Brembo caliper with a 265mm floating NG
  rotor with a standalone mechanical parking brake caliper by J.Juan

• Sidecar brake: Two-piston fixed Brembo caliper with 245mm floating
  NG rotor

Misc.

• Fuel grade: 91 Octane, unleaded

• Fuel tank capacity, gallons: 5.0

• Reserve, gallons: app. 1

• Estimated fuel economy, mpg: 31-37

• Estimated range, miles: 155-185

• Recommended max cruising speed, mph: 70

• Max permissible weight, lbs:1325

• Trunk volume, cubic ft.: 2.9

Warranty

• 2-years parts and labor unlimited mileage.
